TAMPING RAMMER MT-e55
MT-e55

MT series MT-e55

  • MT-e55
  • MT-e55

Tamping Rammer with Battery-operated Power Unit

●Zero-emission power unit model emits no exhaust gas and does not pollute the air.
●Selectable three speeds according to the roadbed condition and the work.
●Start and stop can be done with the push of a switch.
●VAS handle reduces hand vibration and protects electronic components.
●Protector/fan guard to protect motor/harness.
●Original robust bellows resists twisting.
●Original rugged foot made of wear-resistant high-tensile steel sheet and laminated beech wood.
●Storage box for quick manual, etc.

SPEC

SPEC
wear resistant foot 〇
air cleaner -
VAS handle 〇
tacho hour meter -
throttle lever -
engine cover 〇(protector)
engine guard 〇(fan guard)
lifting hook 〇
trench foot -
Cart-rammer 〇
Mikasa carry 〇
dimensions
（mm）		 A 1,040
B 350
C 715
plate size（mm） D 265
E 340
weight（kg） 75(incl. power unit battery)
jumping stroke（mm） 30-70
impact force kN（kgf） 10.8(1,100)
impact number per min 574-689
fuel tank capacity(lits) ‐
power source kW(PS) model DC Power Unit
brand Honda
max.output 1.6kW(2.2PS)

FEATURES

  • FEATURES 01 01 ICONS

  • FEATURES 02 02 4 Stage Air Cleaner System / Outstanding Operability

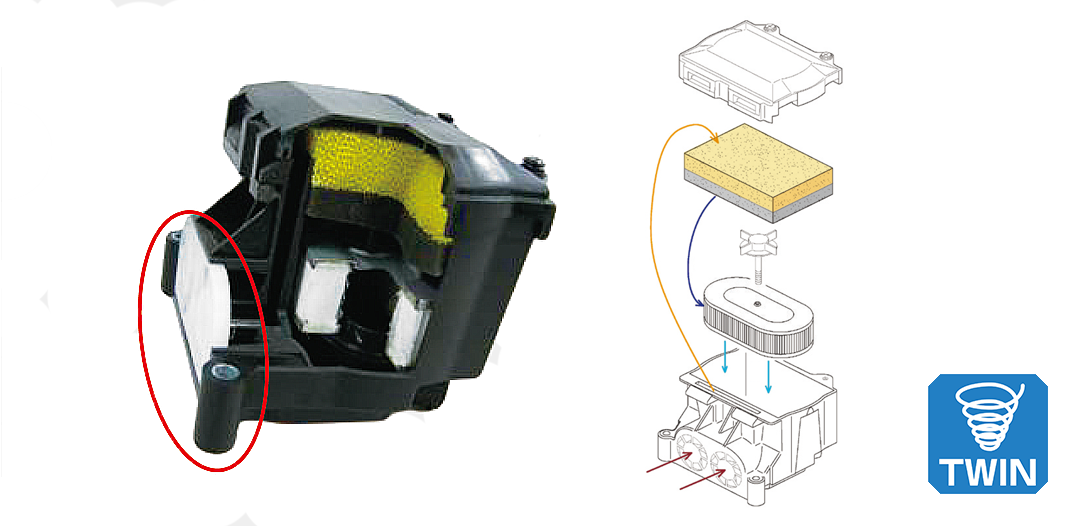

    • Large Twin Cyclone Air Cleaner

      Large Twin Cyclone Air Cleaner

      Large twin cyclone air cleaner has 300% the dust holding capacity of our previous design. (MTX series)

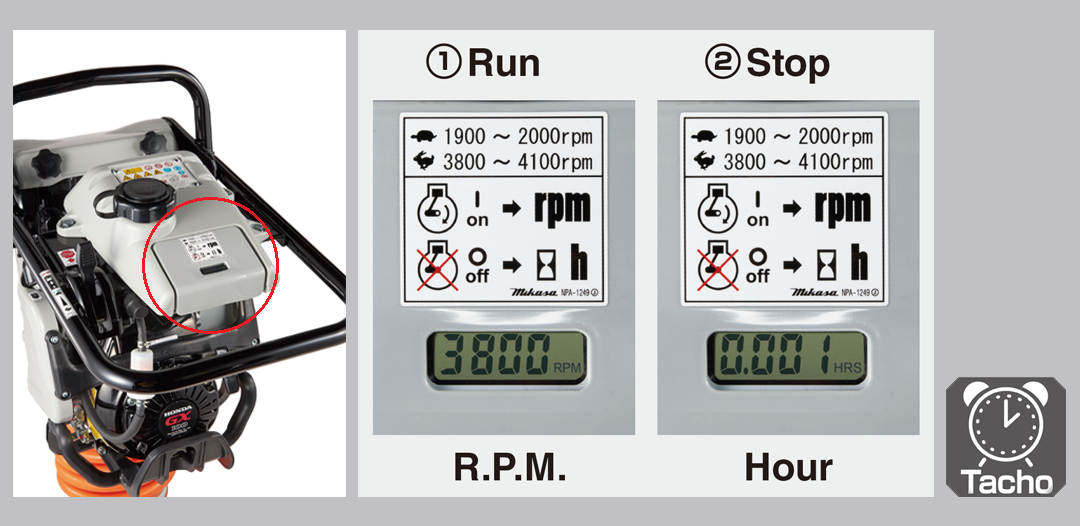

    • Tacho Hour Meter

      Tacho Hour Meter

      1. Engine R.P.M.
      When it is running, it shows R.P.M. and you can check it easily.
      2. Operating Time
      When it is stopped, it shows total operating time and managing its runtime is easy.

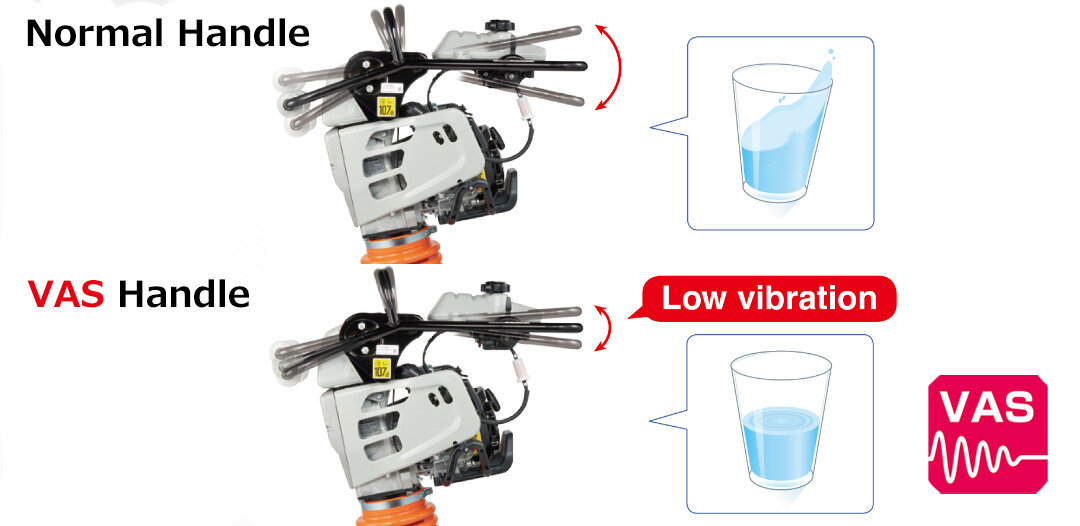

    • VAS Handle

      VAS Handle

      Tamping Rammer utilizes a newly designed Vibration Absorbing System Handle that reduces 30 or 40 % for vibration transferred to your hands (compared to our normal handle models) to work more efficiency.

    • Throttle Lever with fuel cutoff mechanism interlocked kill-switch

      Throttle Lever with fuel cutoff mechanism interlocked kill-switch

      The throttle lever interlocks with the fuel cock and engine stop switch, enabling operation idling and stopping by one lever operation.

  • FEATURES 03 03 Power-Packed Rammer / 360° Protection

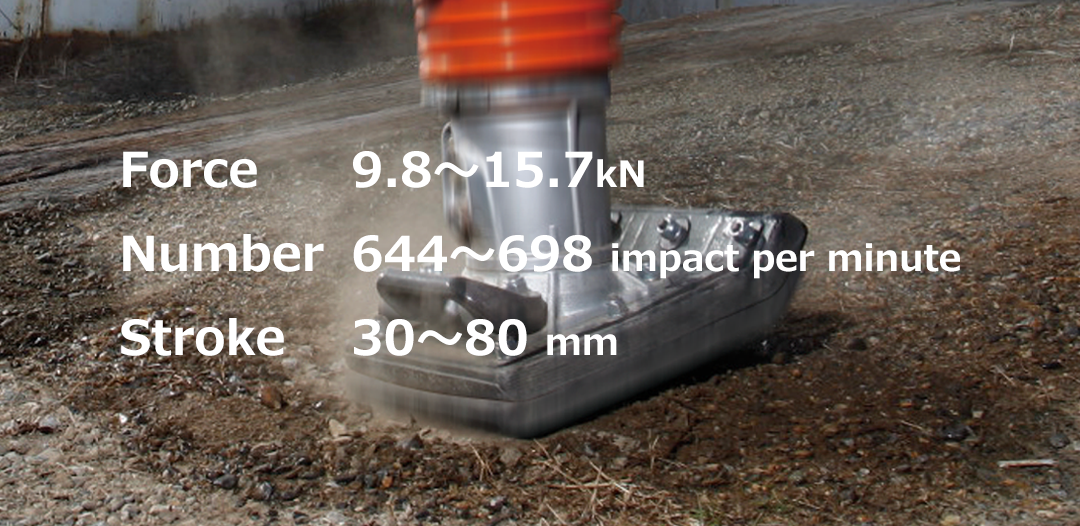

    • Powerful Compaction

      Powerful Compaction

      Solid compaction with a stroke of 30 to 80 mm.*
      *Figures may vary depending on the model.

    • Engine Protection

      Engine Protection

      A ... Protect the engine from rain and dust.(MT-55・66・77).
      B, C ... The material of the side guard and engine guard is made of highly durable, superior shock-resistant resin that protects the entire surface of the engine.

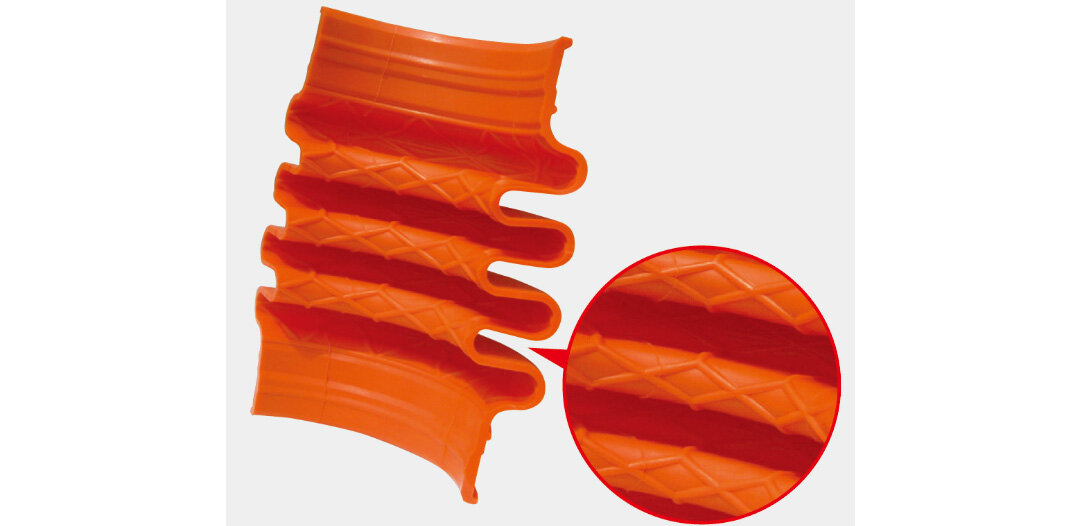

    • Original Robust Bellows

      Original Robust Bellows

      Our bellows designed with meshed pattern inner wall delivers an extremely stable tamping stroke that resists twisting.

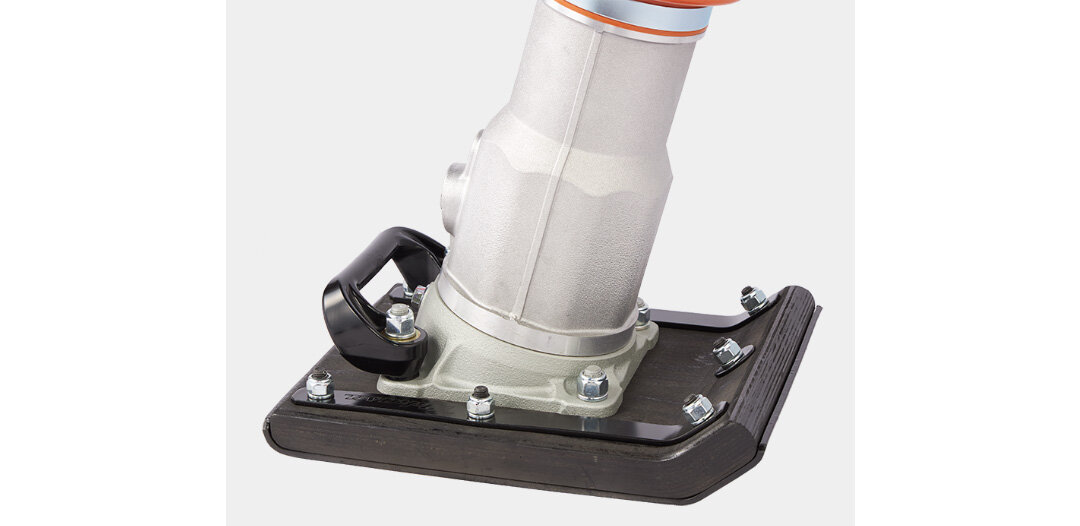

    • Original Rugged Foot

      Original Rugged Foot

      Mikasa’s original foot is metal sheet assembly made from wear resistant, high tensile strength steel and laminated beech wood.
